ACScout-V3

Overview

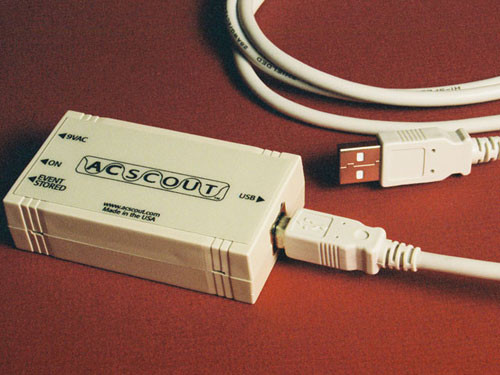

The ACScout-V3 is a highly reliable, easy-to-use AC power monitor that plugs into an electrical outlet. It records surges, outages and variations in voltage and frequency as well as ambient temperature.

This unit comes with an AC transformer plug, industry standard USB cable and software.

Features

• User can set limits for each alarm type and choose whether or not alarm is generated.
• Green LED indicates power is on.
• When unit has one or more alarms, red LED indicates that alarm is stored in unit.
• Unit's battery keeps time and date when power is off. Battery life should exceed 10 years.
• Alarms are stored in a nonvolatile flash memory.
• Memory can hold up to 400 alarms and can be cleared at any time.
• Alarms can be uploaded to standard Windows based PC via USB.
• Unit does not need to be connected to a PC to record alarms only for initial setup and alarm retrieval.

Specifications
Size: 3"L x 1"W x 1.5"H

Weight: 8oz. with wall transformer

Operating Limits/Accuracy: Voltage limits 0 to 200V volts RMS; accuracy +/- 2 Volts RMS. Minimum time to detect a voltage variance 1/10th of second. Frequency range nominal 60Hz +/- .2 Hz. Minimum time to detect a frequency variance 1/30th of a second. Temperature between 0 to 120 degrees F; accuracy +/- 5 Degrees F. Temperature specifications valid after continuous operation for at least 30 minutes

Battery Life: 10 years. Alarm Types Detected: AC power off; AC power on; AC voltage high; AC voltage low; AC frequency high; AC frequency low; temperature low; temperature high, time and date

Warranty: 5-years. Return to factory for replacement

System Requirements

• Works with USB 1.0 or 2.0 on Microsoft Windows 2000™, Windows XP/XP Pro™, VISTA™, or Windows 7™
• 2MB of hard drive space
• USB Port
